My Slice of Nature (Part 3)

Recommended Posts

Starting a new thread to document the progress of a new set up.

Tank was given by a nice reefer (thanks!!). In return, I bought over his equipment.



Its a nice sized tank - 5 x 2.5 x 2, 15mm glass, chengal wood stand. The physical condition of the tank wasn't great and took it as part of the fun to fix it during free time on the weekends. Some pictures :

P7160884 (Large).jpg

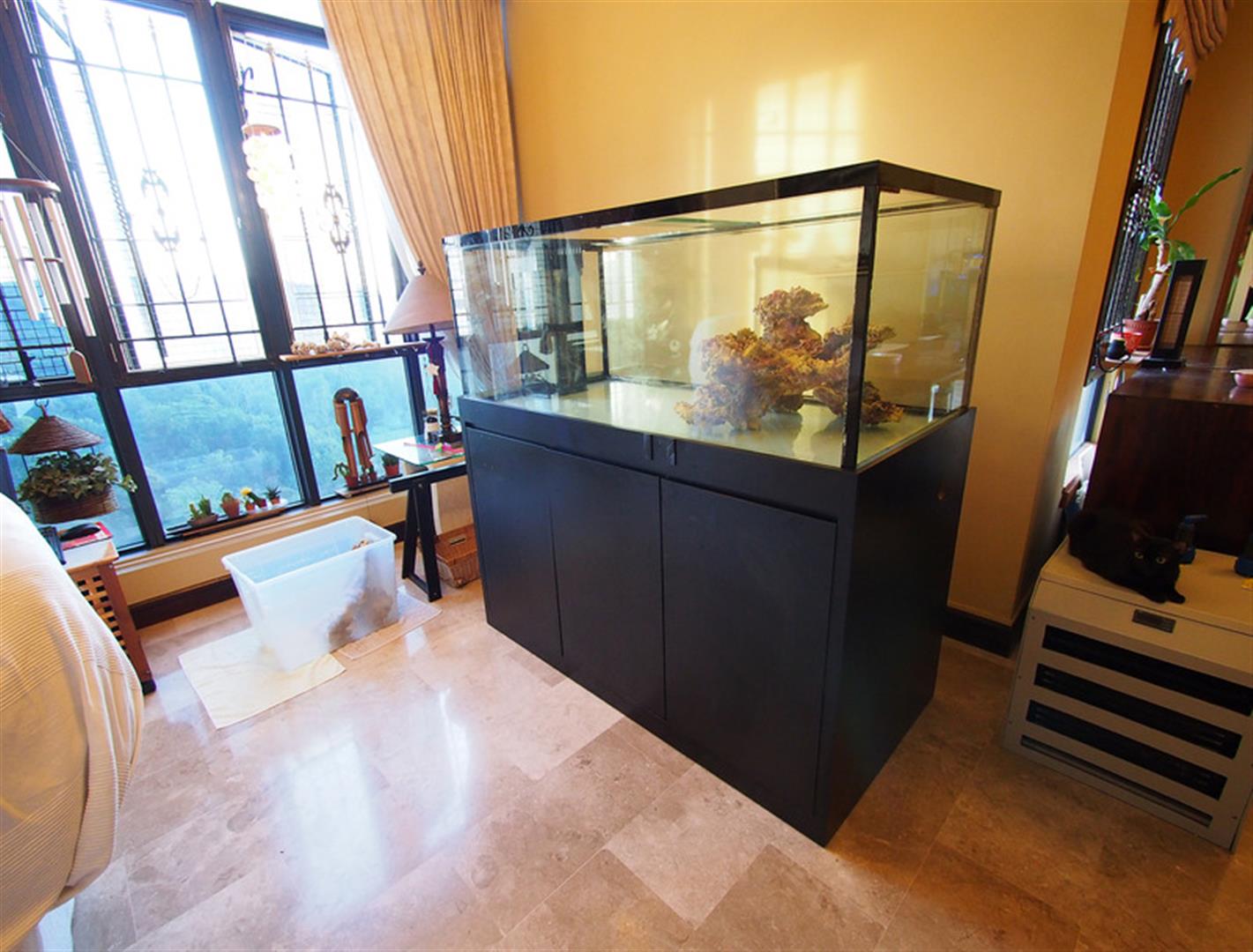

Upon closer inspection, there are several large patches of scratches in the middle (viewing area)

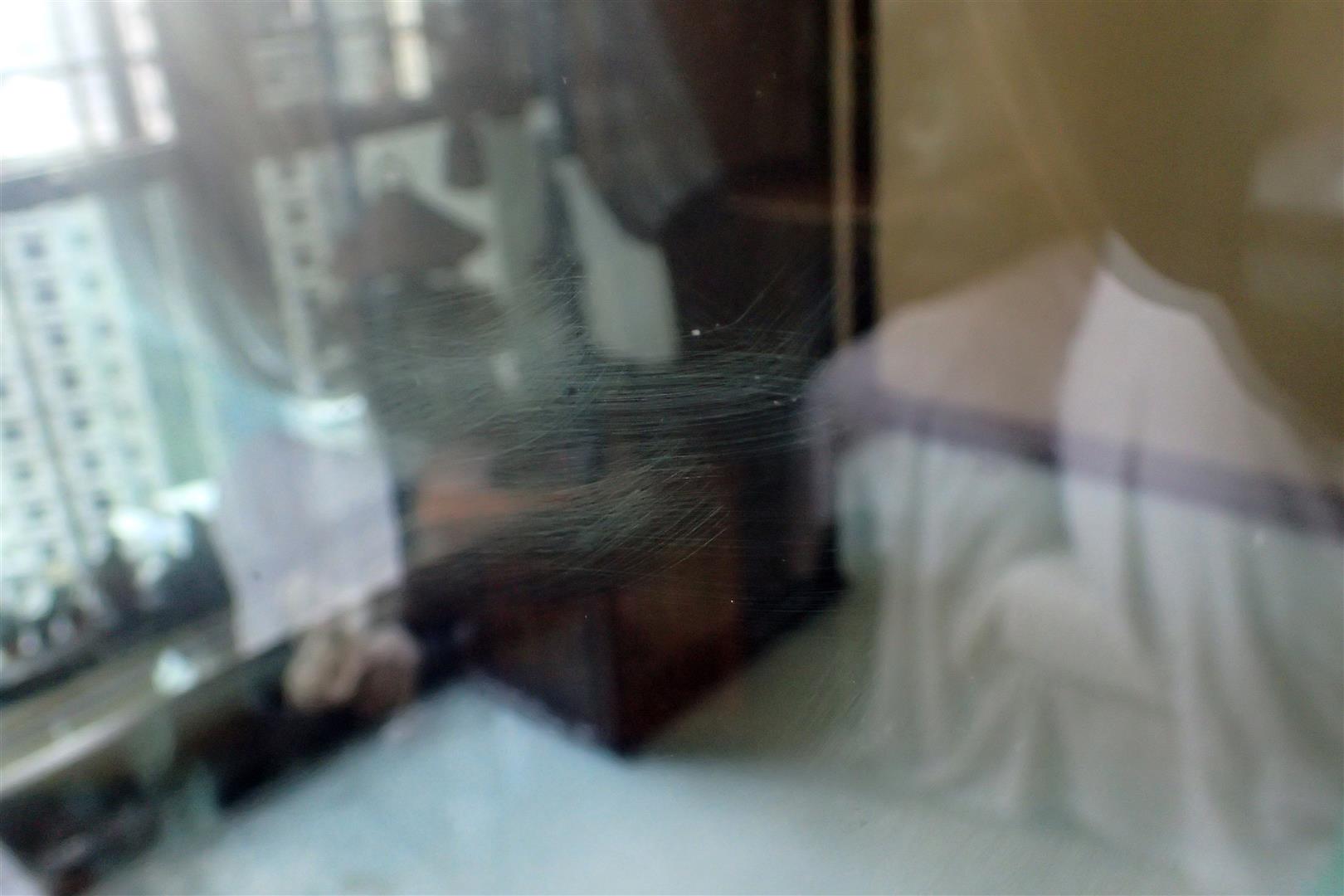

P8060191 (Large).jpg

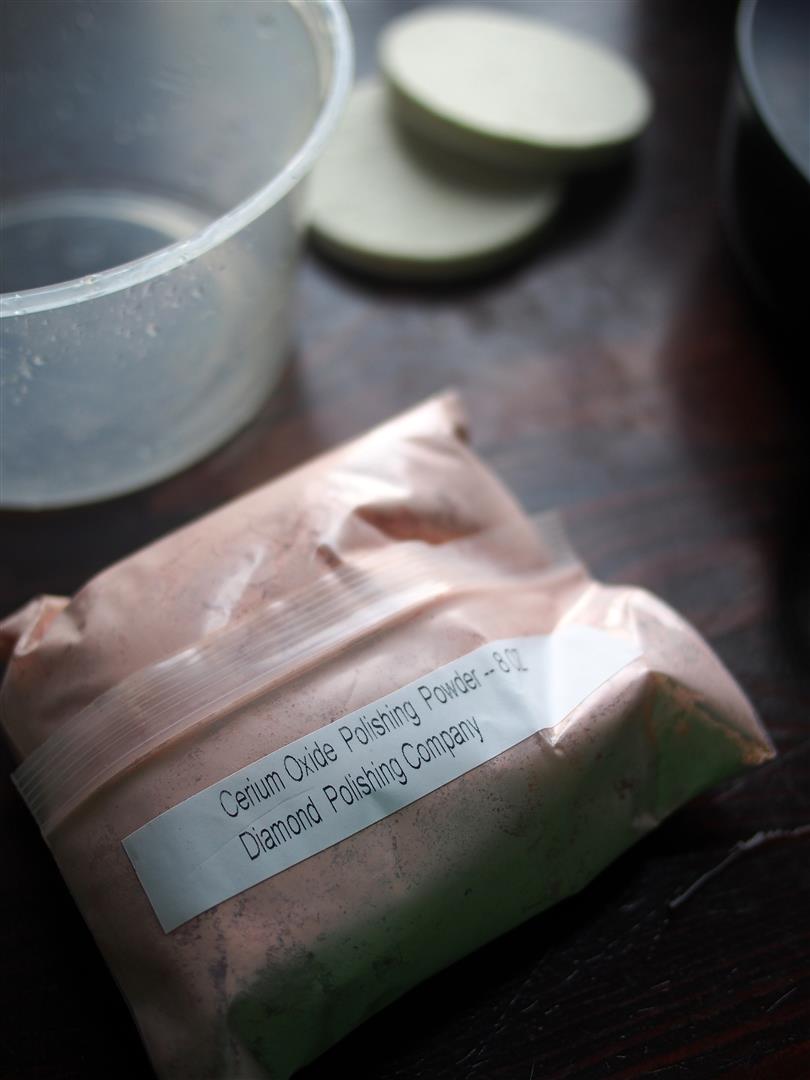

Ordered some Cerium Oxide - a compound commonly used in the industry to polish glass

P8060909 (Large).jpg



Mix into a paste

P8060910 (Large).jpg

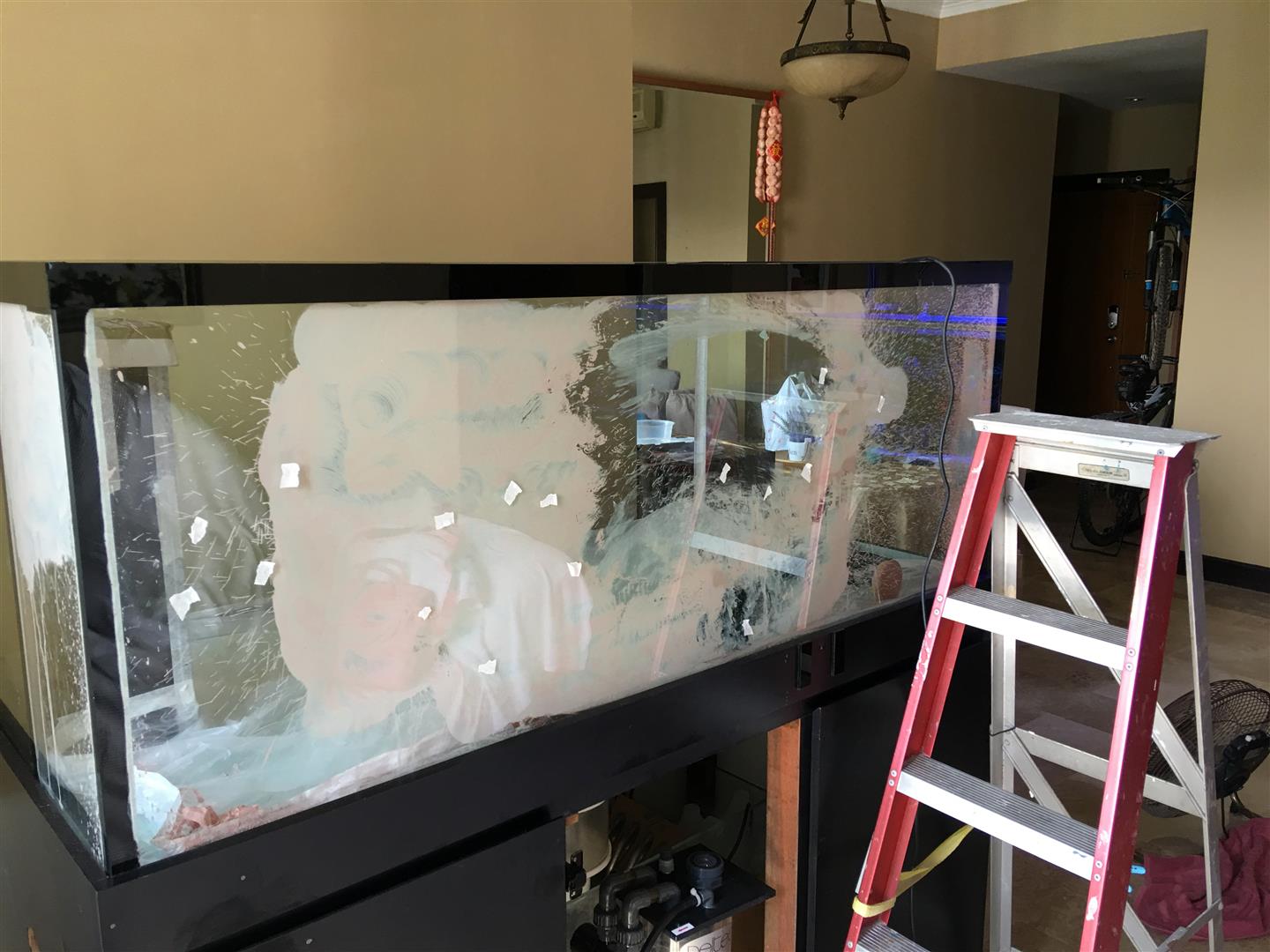

Marked the areas with bad scratches with masking tape

IMG_9968 (Large).jpg

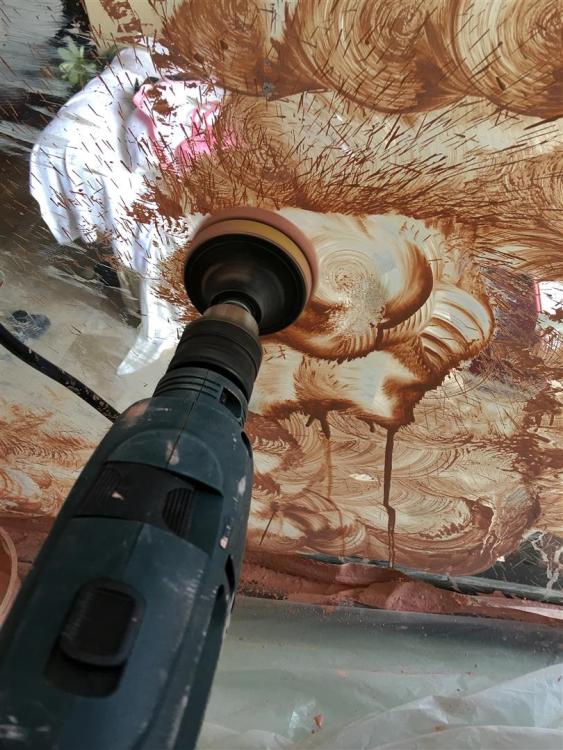

Climbed into the tank & polished out the scratches. I'd say 90% of the bad scratches are gone. I didn't bother to remove the scratches from areas which were not easily seen.

IMG_9970 (Large).jpg





  • Like 1

Share this post


Link to post
Share on other sites

Did the usual process of cleaning the rocks

Bleach, soak, scrub the rocks for a day or so :

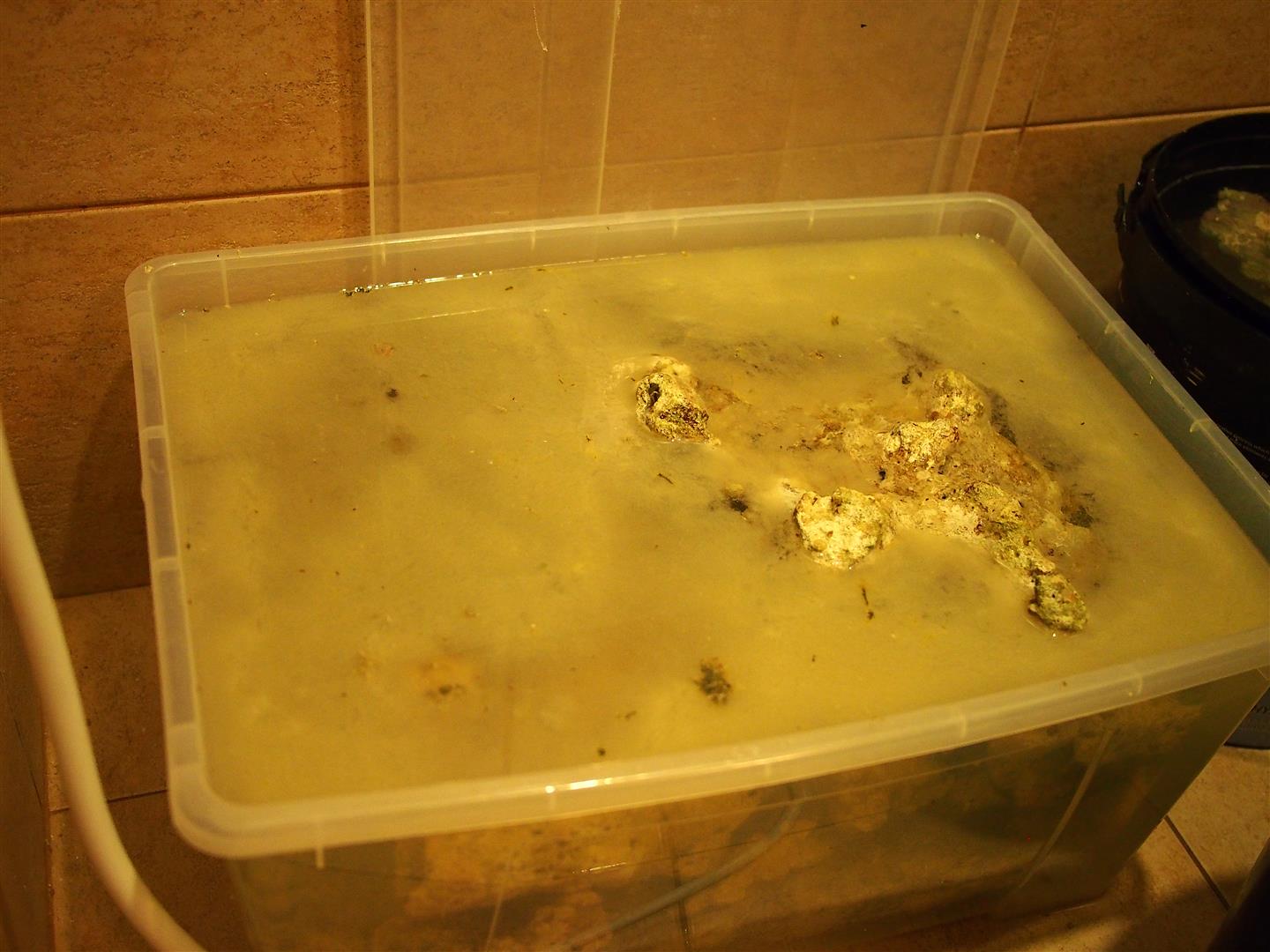

P7060876 (Large).jpg

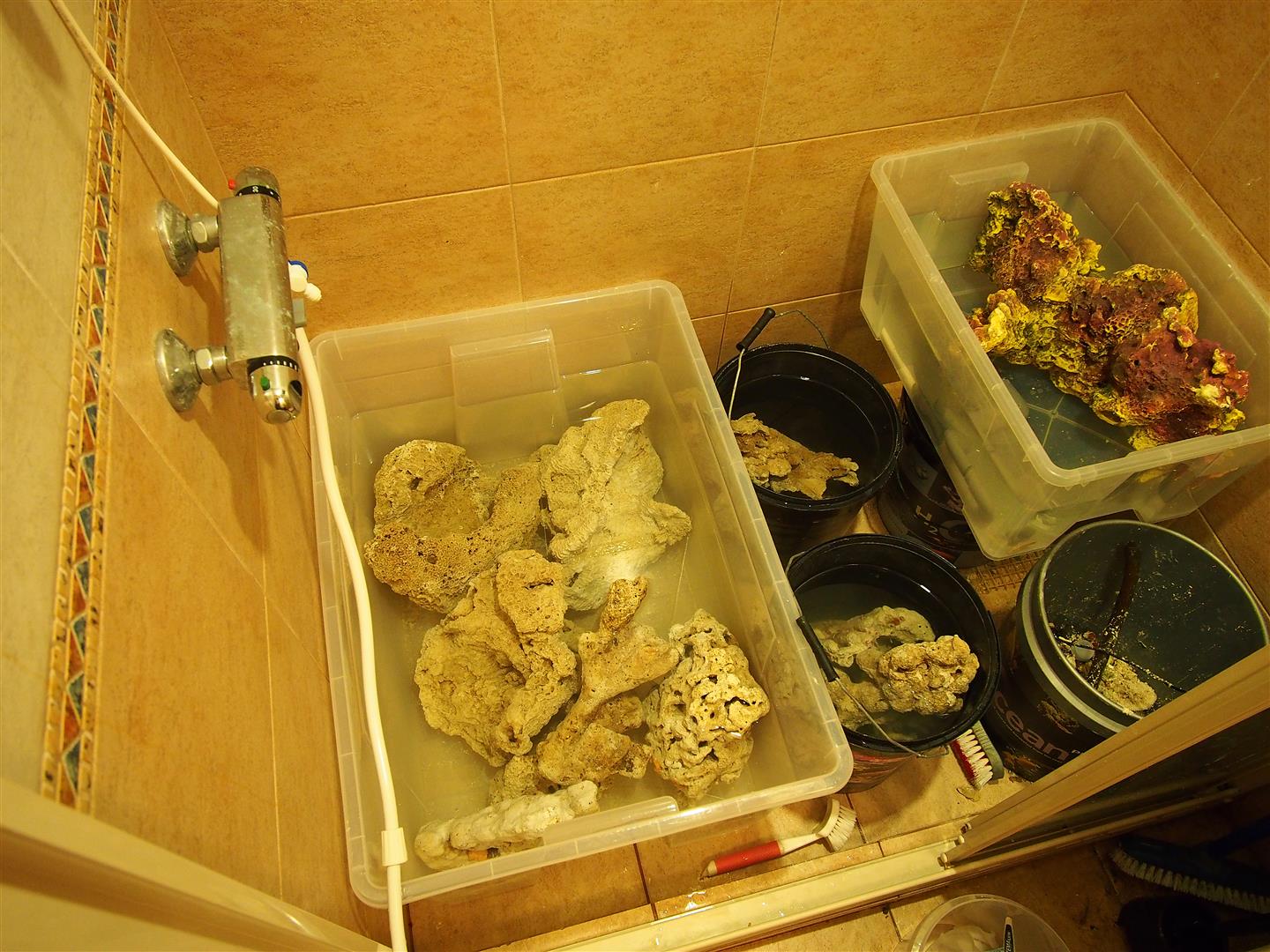

Then rinse with tap water / anti chlorine a couple of time. Having a large open bucket like this 120L one from ikea is great

P7170890 (Large).jpg



Having some water movement should improve the efficiency to remove the bleach. Soaked the rocks in tap water for a few days.

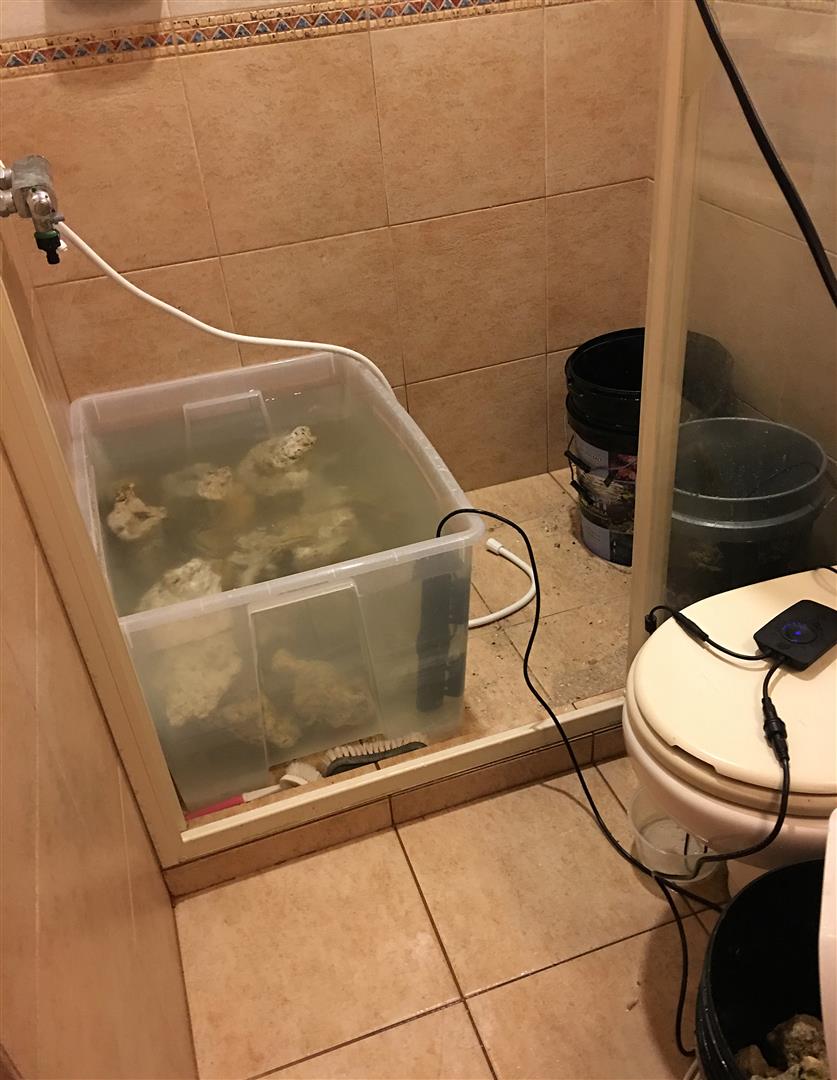

IMG_9709 (Large).jpg

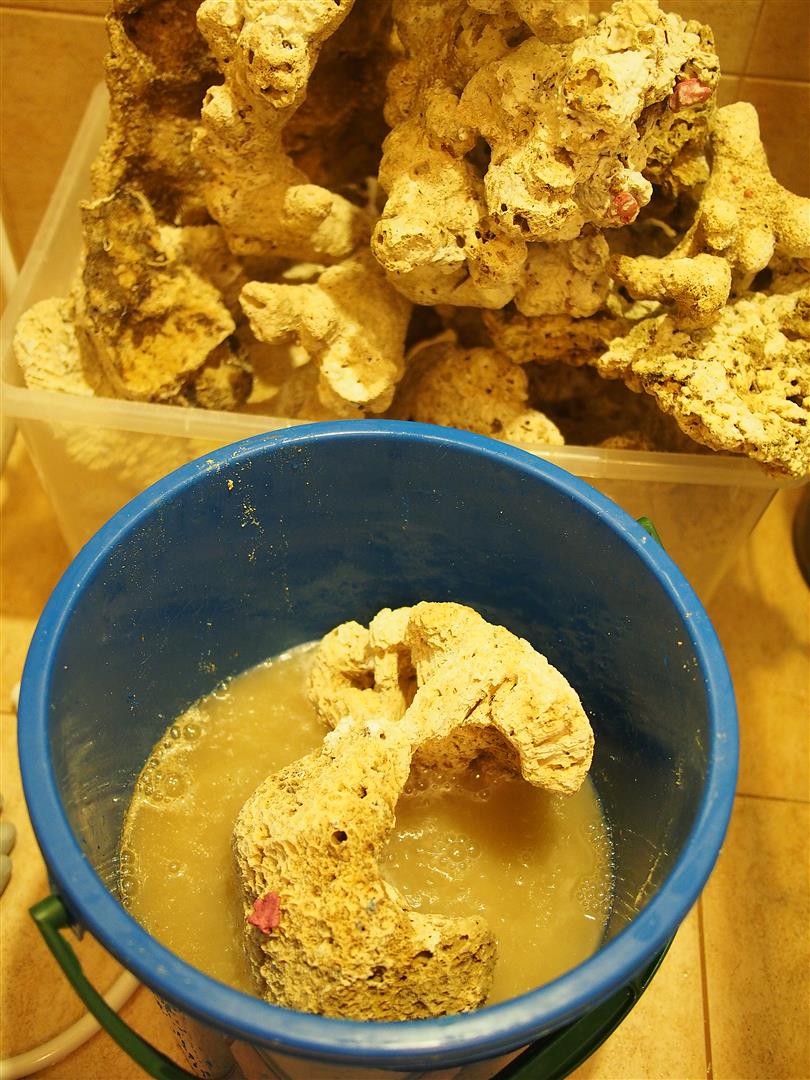

Let the rocks dry, then vinegar soak for 15min.

P7270907 (Large).jpg





Share this post


Link to post
Share on other sites

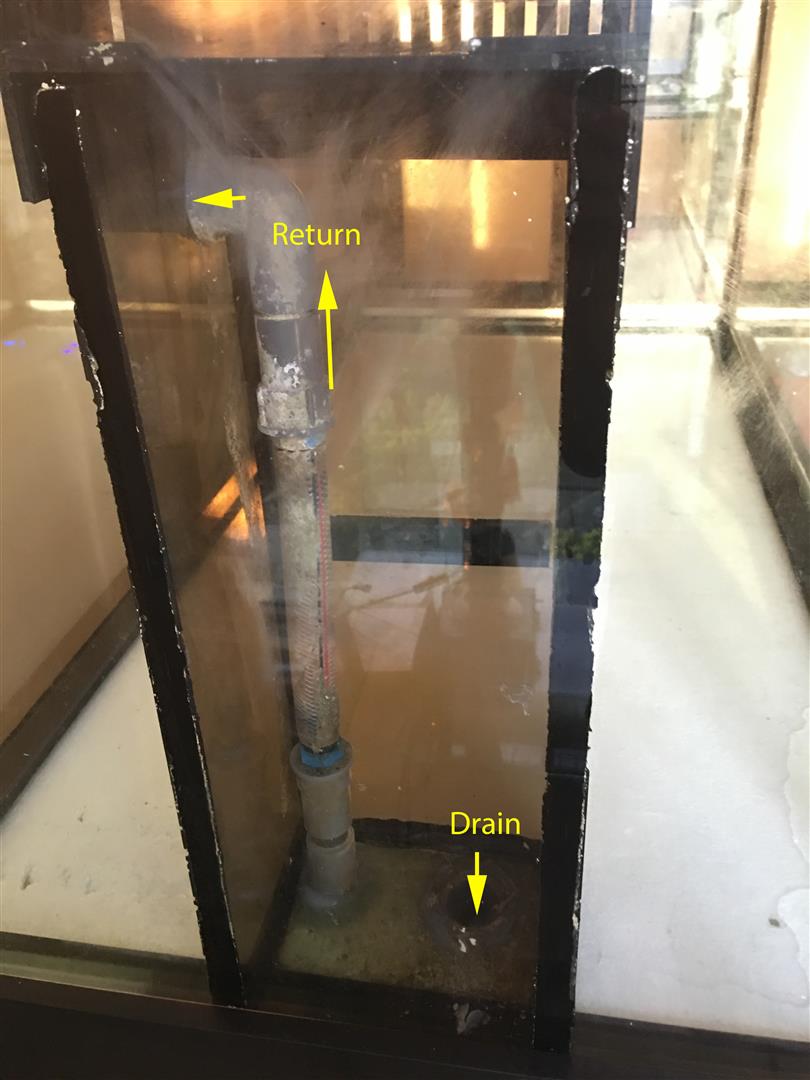

Original plumbing was the 'traditional' overflow with one drain & 1 return. These type of plumbing is known to be noisy. Hence it was converted into a Herbie overflow instead.

IMG_9688 (Large).jpg



Noticed that the original fittings used had a potential issue.

IMG_9924 (Large).jpg

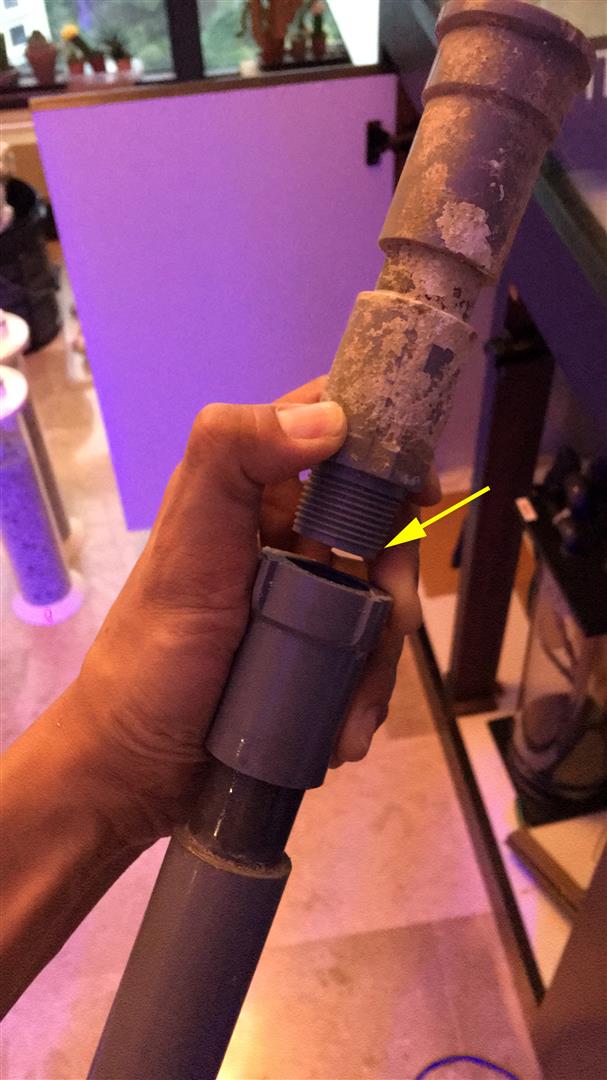

Only 1-2 threads were engaged when this was fit through the bottom of the tank. High risk of loosening -> risks of leaks.

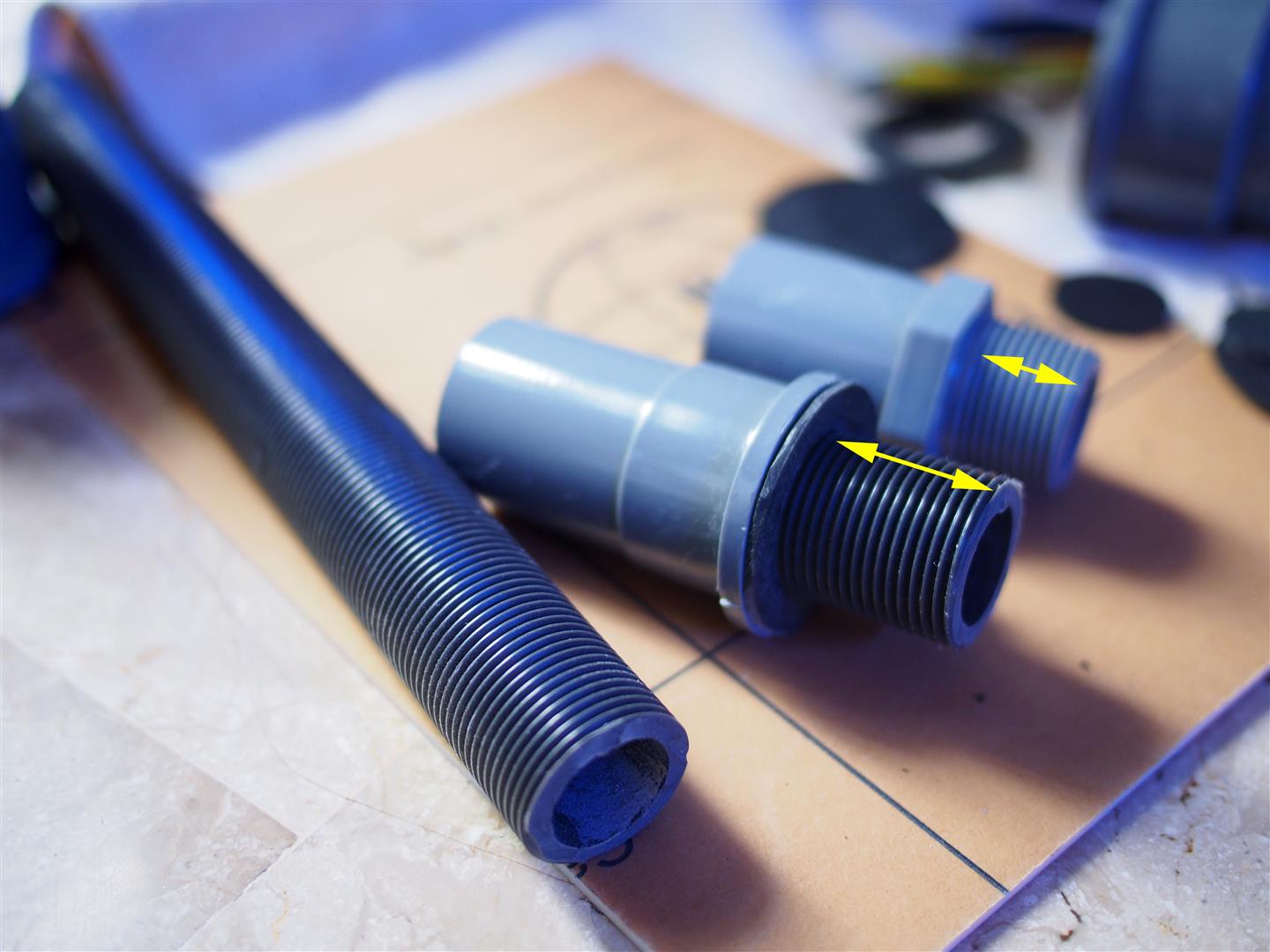

This was a 3/4" pipe and I could not find fittings with longer threads. Got a external threaded pipe & made a bulkhead with longer threads.

P8130940 (Large).jpg

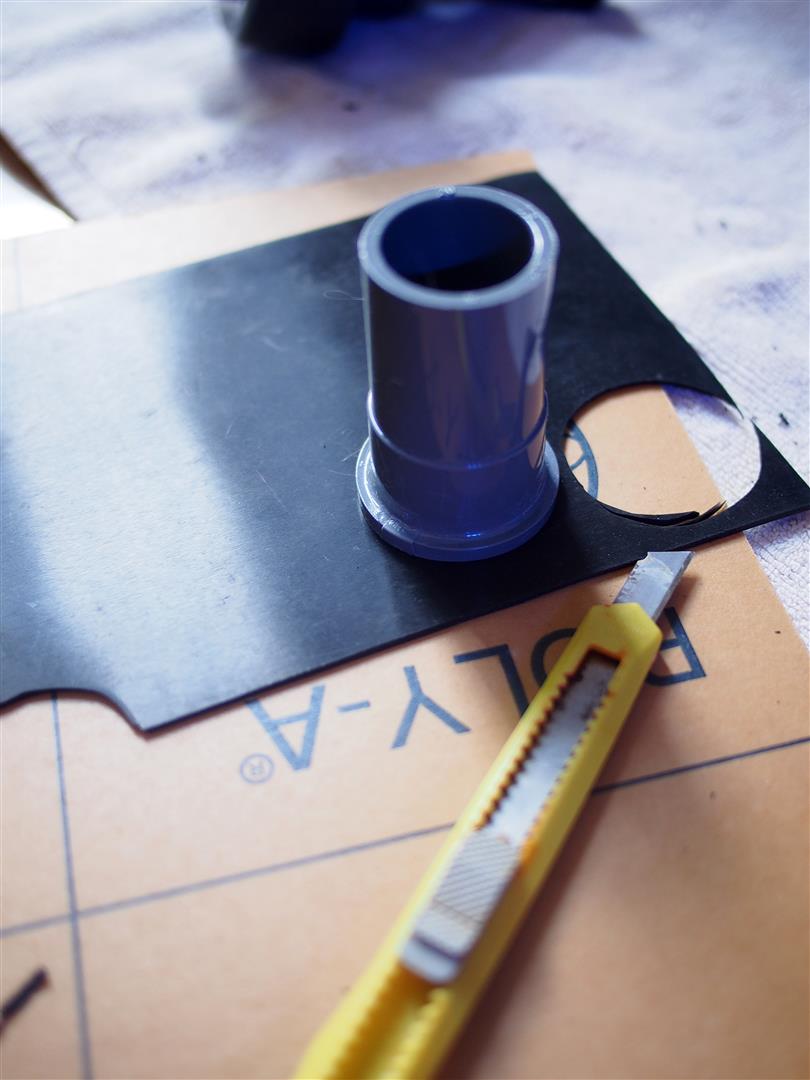

Cut out a gasket from a sheet of EPDM rubber. To be used between the bulkhead & glass (instead of using silicon sealant)

P8130936 (Large).jpg

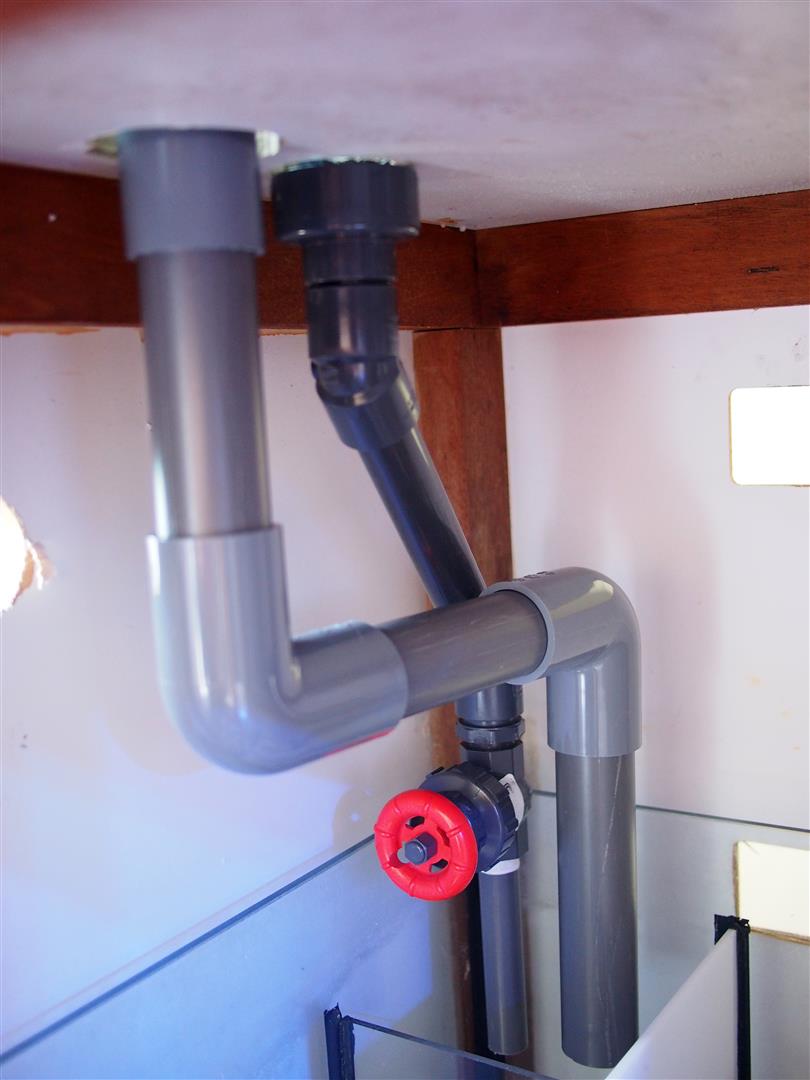

Drainage piping done

P8140945 (Large).jpg

Share this post


Link to post
Share on other sites

Camping here for more updates.. Is gonna be another big ocean in the west..


Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites
6 minutes ago, Kelvin Ang said:

Do tank bo jio loh .

Sent from my SM-N920I using Tapatalk


Its a 2nd hand tank lei.

Share this post


Link to post
Share on other sites

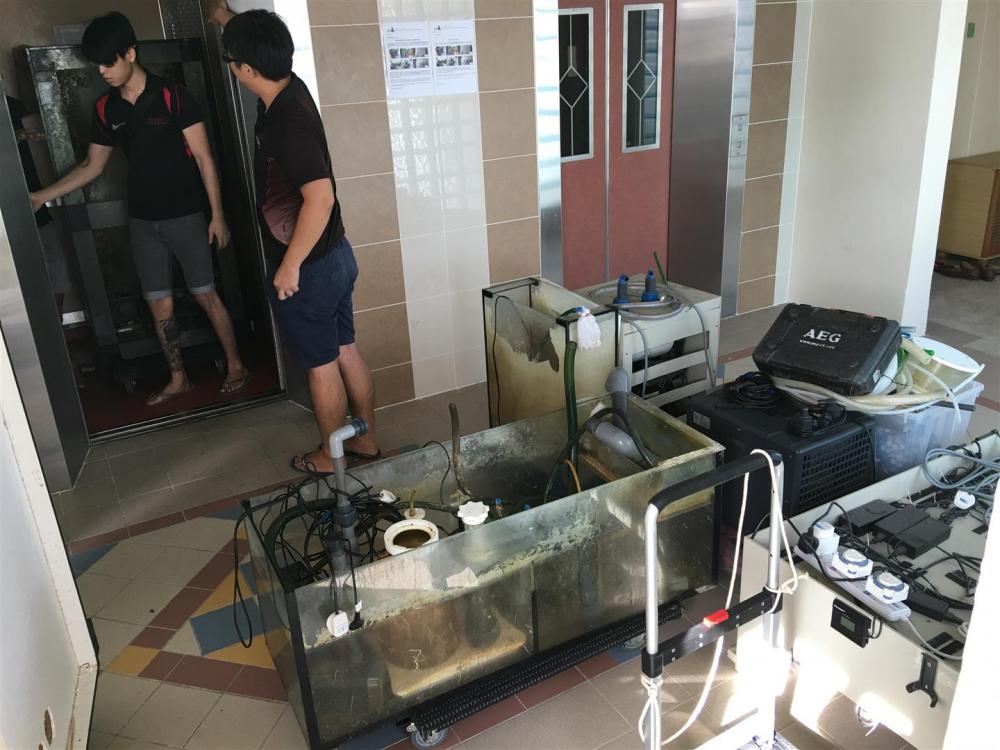

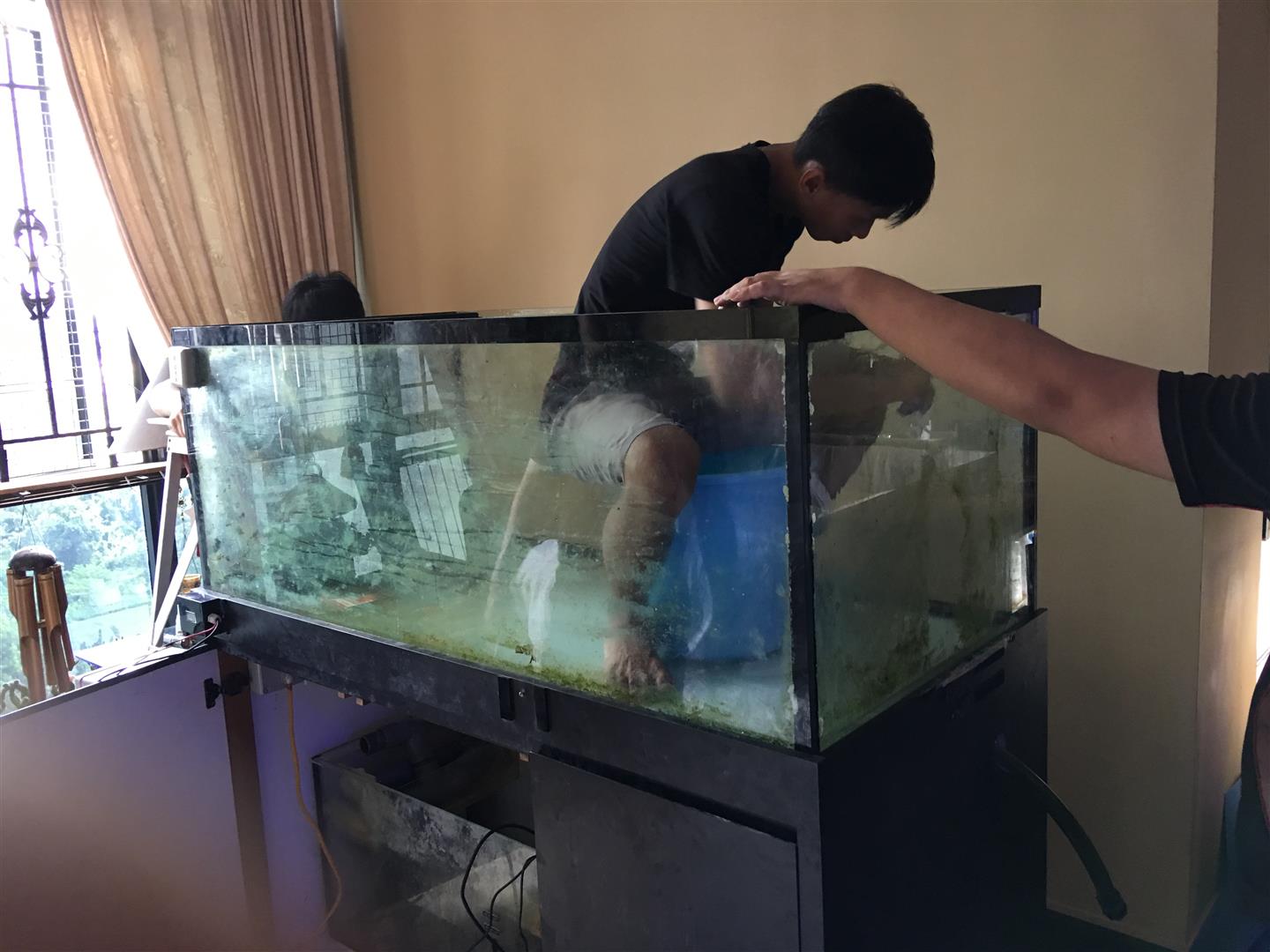

Someone commented separately that the tank looked so new. In actual fact, this was what it was like initially when tank was moved on 7th July



3B1EB29F-213E-4734-A380-93DC6CFA954D (Large).jpg



71A94E78-BA47-4117-A9E7-6F226F7987D6 (Large).jpg

Share this post


Link to post
Share on other sites

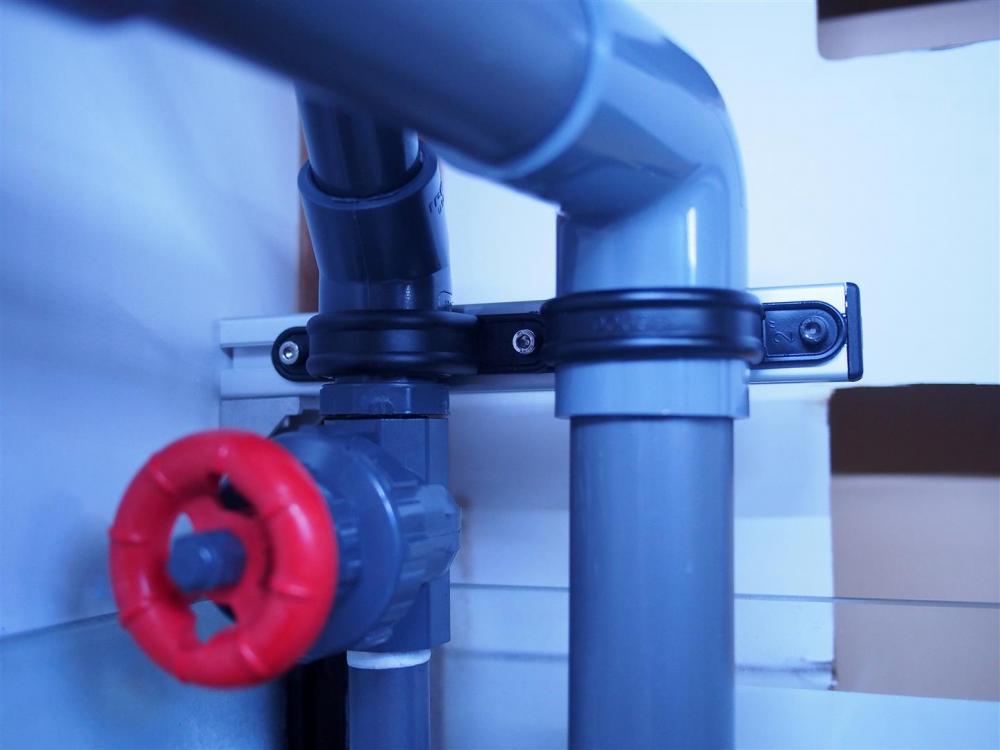

The gate valve is quite heavy & not located directly underneath the bulkhead. I was worried it'll compress the gasket unevenly over time. Hence the pipes were secured with a scrap piece of aluminum profile

P9041447 (Large).jpg









Share this post


Link to post
Share on other sites

Dun mind the questions,

Can share the specs of the gate valve, slip on x NPT thread?

From Hai Cheong?

Is the dark grey pipe sch 80 type?

  • Like 1

Share this post


Link to post
Share on other sites
23 hours ago, Sherilyn91 said:

Swee.. Looking forward to see the end product..


Sent from my iPhone using Tapatalk

Tank progress quite slow. I will make it to your place one of these days.



Share this post


Link to post
Share on other sites
15 hours ago, dsam said:

Dun mind the questions,

Can share the specs of the gate valve, slip on x NPT thread?

From Hai Cheong?

Is the dark grey pipe sch 80 type?

That's a Spears gate valve. 1" slip fitment. Yes, I got Hai Cheong to order for me but they applied a very high mark up :(

Nevermind...just 1 piece.



The dark gray pipe is some leftover schedule 80 1.5" pipe i had left from my previous tank project. Hence, everything upstream is upsized to minimize losses.

Schedule 80 is absolutely unnecessary for our tanks. It was a newbie error made the last time.



Share this post


Link to post
Share on other sites
Tank progress quite slow. I will make it to your place one of these days.



When ur project is done I would like to make a visit too! Haha


Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites
On 9/6/2016 at 8:10 AM, Jason Ng said:

Yes. Great info. Thanks for sharing. Can tell where u get the piping stuff. Thanks

Sent from my SM-G900F using Tapatalk

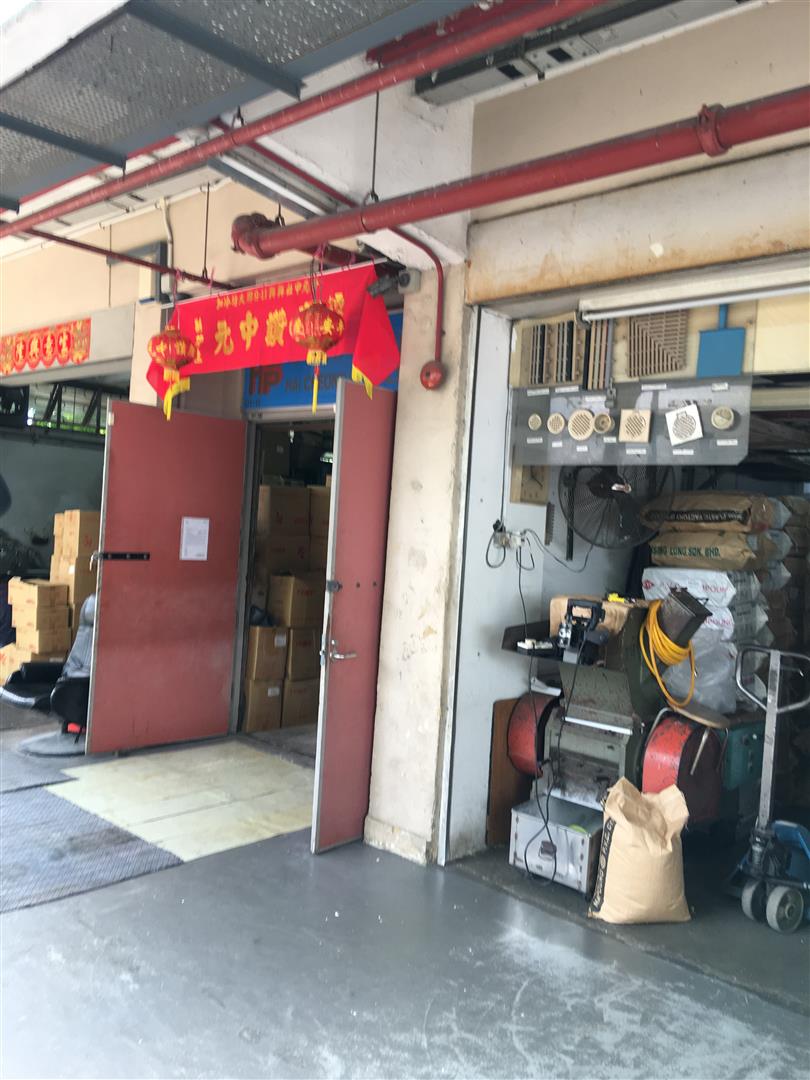

Most of my piping stuff are from Hai Cheong Plastic (Located at 11 Kallang Place).

B6DD6A65-03A9-4C77-B010-BD96BB472FB3 (Large).jpg

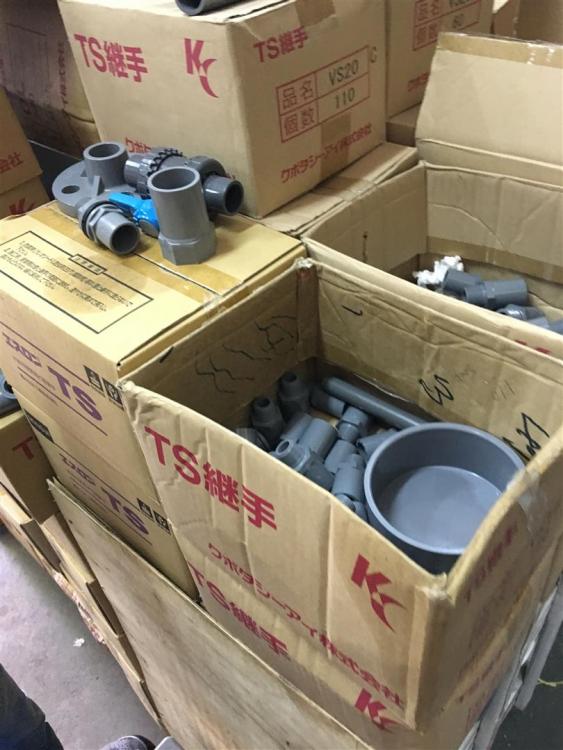

CD703820-05E6-42D7-AA52-14492B067B24 (Large).jpg



Alternatively, you can get a good selection at Madpetz or good neighbourhood hardware shops.

Share this post


Link to post
Share on other sites

Thanks for the reply. Wonder if you compare the cost with BRS? Yea, Sch 80 is always a pain to construct with compatibility issue. But their Sch 80 bulkhead is very solid.

Watching your Part 3 closely. Your tank thread always gives lots of inspiration and ideas to us. Great job!

Share this post


Link to post
Share on other sites
On 9/4/2016 at 11:47 PM, SubzeroLT said:

Original plumbing was the 'traditional' overflow with one drain & 1 return. These type of plumbing is known to be noisy. Hence it was converted into a Herbie overflow instead.

IMG_9688 (Large).jpg



Noticed that the original fittings used had a potential issue.



Only 1-2 threads were engaged when this was fit through the bottom of the tank. High risk of loosening -> risks of leaks.

IMG_9924 (Large).jpg

This was a 3/4" pipe and I could not find fittings with longer threads. Got a external threaded pipe & made a bulkhead with longer threads.

P8130940 (Large).jpg



Cut out a gasket from a sheet of EPDM rubber. To be used between the bulkhead & glass (instead of using silicon sealant)

P8130936 (Large).jpg



Drainage piping done

P8140945 (Large).jpg

Hi bro.

I have the longer version which is 1" type.

You can get it from malaysia or a HW shop at AMK industrial park.

Share this post


Link to post
Share on other sites

Nice. Seldom see reefers whom post the process of starting a tank as compared to 4-5 years ago. Will be following for sure. :yahoo:
