1000 Gallon 3D Hole in the wall


Recommended Posts

  • SRC Supporter

Starting this new thread to share the new tank build of my system.



Idea / concept of setup

After all the years in the hobby reefing from a small 2 ft tank, to a current 6ft tank in my home. It has always been a dream to have a beautiful large reef tank in my dream home surrounded by garden and natural. Luckily , I am able to fulfill this dream in the early stage of life with the support of my family and friends.

The concept of having a dedicated Fish room is something many reef addicts like me always dream of, and the opportunity of turning this crazy idea into a reality strike when we got our new place.

While searching around on the internet for some ideal, and inspiration of my new setup I came about this photo of a 3D wall mount aquarium and it strike me to have a similar concept on my new tank.




So the story begin lol…

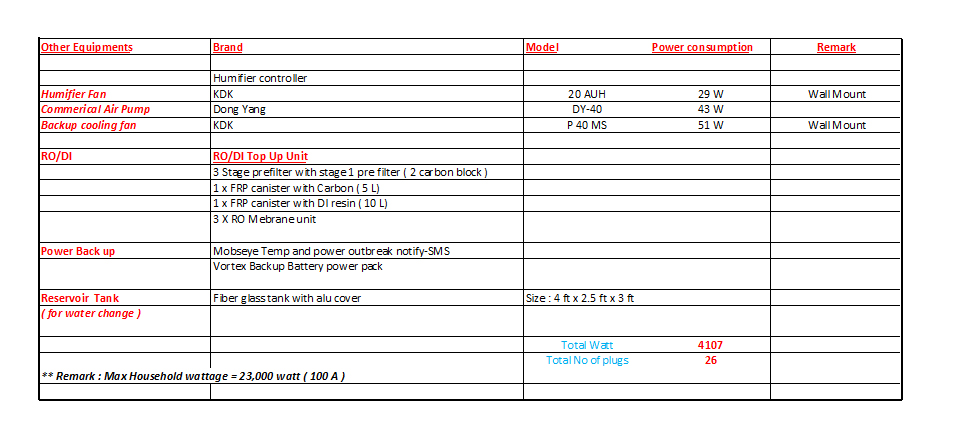

Some specification of my new setup


Main Tank : 72" X 48" x 30 " ( 6ft x 4ft x 2.5ft ) - Plexiglas

Sump Tank : 62" x 36" x 24 " - PP

Frag Tank 1 : 36" x 24" 18" - Glass - 12mm

QT / Hospital Tank / Frag Tank :36" x 24" 18" - Glass 12 mm

Refugium Tank :36" x 24" 18" - Glass 12mm

Cryptic Tank : 36" x 24" 18" - Glass 12mm

Frag sump tank 1: 36" x 24" 20" - Glass 12mm

Frag sump tank 2 : 36" x 24" 20" - Glass 12mm


Total Water volume : 4163.82 ( 1041 Gallon )

Link to post
Share on other sites
  • Replies 897
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

latest video update

Sharing a recent video taken by Qian hu team, thank for helping out as my video sucks.

If possible, the valves can be electronically controlled. push of buttons to open and close the return and supply lines valves. punch in valve angle to control the ball valve angle. Auto water change.

Posted Images

  • SRC Supporter

WOOHOO!!!!! FINALLY A SINGAPORE CHINGCHAI style (i know alot of hidden dragons but at least this one that is documented)

Sent from my GT-I9300 using Tapatalk

Mine is nothing compare to his lol...

Link to post
Share on other sites

ok. can host next year's Aquamara there liao :x

[DECOMMEND]

Tank : 24" x 12" x 15" Acrylic Gex Tank

Lightings : Maxspect Razor 120W , Maxspect G2 160W ( Sold )
Skimmer : Red Sea Prizm
Dosing : Brightwell Aquatics Microbacter7,
Brightwell Aquatics Biofuel, Florida Aqua Farms It's Clear,

Florida Aqua Farms Coralline Stimulator.

Wavemaker : Tunze Nanostream 6015

Link to post
Share on other sites

If possible, the valves can be electronically controlled. push of buttons to open and close the return and supply lines valves. punch in valve angle to control the ball valve angle. Auto water change.

  • Like 1

Tank size:36"x36"x24"

Return pump" 2x Reef Octo 5000

Skimmer:BK Double Cone 200 on Reef Octopus DC 5500s.

Wavemaker:2xVortech MP40wES

Chemical filtration:1xeducator FR(biopellets)

Chiller:1hp Daikin compressor.

Lighting:2 x Kessil A360we

Auto topup system: JBJ ATO + new jet 1200

Dosing system: Kamoer 3 channel.

Additives: ESV 2 part.

Power consumption

2XReef Octo 5000: 120watts

BK skimmer:50watts

2xVortech wavemaker:70watts

Daikin compressor:775watts

Lighting:180watts

Ato system:21watts

Exhaust fans:16watts

Refugium light:27watts

Link to post
Share on other sites

Very Daring move..

Impressive.

I like !!!!!!!!!!!!!!!!!!!!!!!!!!!

Out of the Box ... I mean Out of the Wall idea !!!!!!!!!!!!!!!!

P/S: What is the link to this Wall Aquarium .. would love to read more before I have a chance to see your finished product. Thanks.

Link to post
Share on other sites
  • SRC Supporter

although you have bought your skimmers, perhaps can consider this LifeReef VS3-72 during your next upgrade.. hehe  :thumbsup:

Posted Image

You should see my aquamedic skimmer , the size is similar to this but the build of the aquamedic skimmer is not that fantastic.

Sent from my GT-I9300 using Tapatalk 2

Link to post
Share on other sites

Look like a exciting project!! Very detailed in your choosing of equipments. My electrical box is to be use here? Camping here for updates.

Display Tank : 48" x 22" x 22" Bean Animal CTC overflow box design, custom built by Aquarium Iwarna.

Sump : 37" x 20" x 18" inspired by Royal Exclusiv Dream box & Trigger Systems Tideline Series sump designs, custom built by Aquarium Iwarna.

Lightings : Inled R80 x 3 with 2  x Illumagic Vitamini Super Actinic LED Striplight Bars.

Chiller : Dalkin 1hp compressor with build-in drop coil.

Skimmer : Skimz Octa SC205i Protein Skimmer.

FR : H2Ocean FMR75 Fluidised Media Reactor with Hailea HX-2500 (Feeder Pump) running Rowaphos.

CR : Skimz Monzter E Series CM122 Calcium Reactor.

Main Return Pump : SICCE Syncra ADV 9.0 & Jebao ACQ-10000 Water Pump.

Wavemaker : Maxspect Jump MJ-GF4K, Jebao SLW-30M & SLW-20M Wave Pump.

Water Top Up: Reef Octopus ATO.

Link to post
Share on other sites

You should see my aquamedic skimmer , the size is similar to this but the build of the aquamedic skimmer is not that fantastic.

Sent from my GT-I9300 using Tapatalk 2

Why not that fantastic? I thought aquamedic is something awesome.

Never consider schuran? I'll feel.schuran despite being a very old brand but the design fits a big tank.

Sent from my GT-I9300 using Tapatalk

Happy Reefing,

Marc J.

Link to post
Share on other sites

Solid bro!

More pics please ..... of the equipment etc ...

Not using 2 Hydra 52?

Cheers!

Hydra 52 is inside his equipment list.. :evil: !

post-1182-049500100201281969137_thumb.gi

Knowing is not enough; we must apply. Willing is not enough; we must do. - Goethe

Link to post
Share on other sites

Very impressive build in creation. Equipment list alone will make lots of us here drool even without adding anything in.

:bow: :bow: :bow:

2x2x1.5

======

Maxspect Gyre

Maxspect Razer 120w 16k

H2O FR with Rowa

Eheim Universal 2400

BM Nac 5.5

JBJ Arctica 1/10Hp

Link to post
Share on other sites

Very impressive build in creation. Equipment list alone will make lots of us here drool even without adding anything in.

:bow: :bow: :bow:

it will be a jaw drop if he adds the costing at the end of the listing .. haha

>>

Link to post
Share on other sites
  • SRC Supporter

Very Daring move..

Impressive.



I like !!!!!!!!!!!!!!!!!!!!!!!!!!!



Out of the Box ... I mean Out of the Wall idea !!!!!!!!!!!!!!!!





P/S: What is the link to this Wall Aquarium .. would love to read more before I have a chance to see your finished product. Thanks.

I also don't really know yet how the end result will look like but keeping my fingers cross lol.

Couldn't find the original source or thread of the photo I shared, maybe someone whom saw it before can share.

Sent from my GT-I9300 using Tapatalk 2
